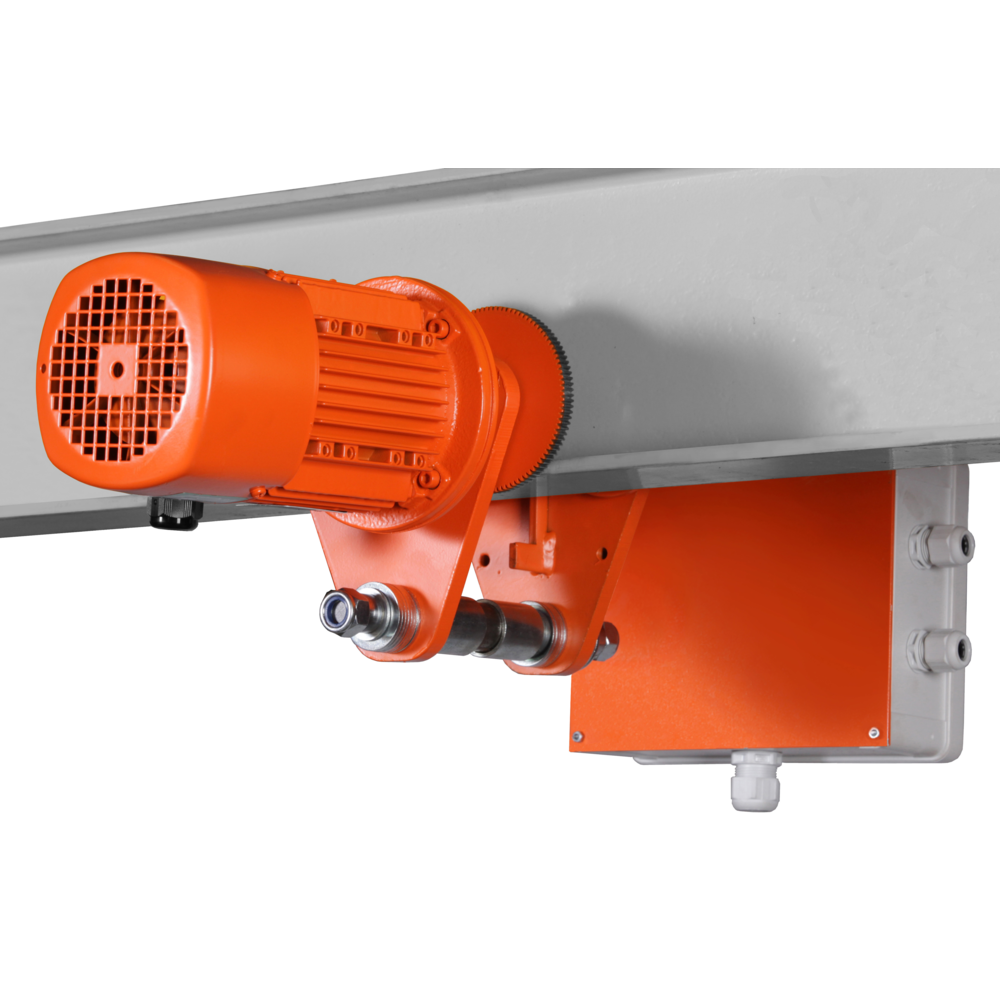

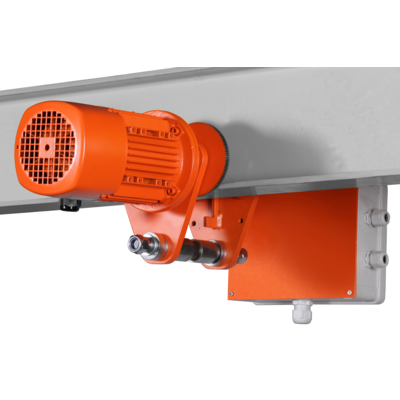

EEFS 1-axle trolleys can ideally be combined with any electric chain hoist.
Properties
- 2 speed.
- Wheel rupture supports and anti-surge devices.
- Push-button box not included.
Technical properties
- Driving speed 5/20 m/min
- Operating voltage: 400V
- Control voltage: 24V
- Protection class: IP54
- Duty cycle 120 sw/h ED 40%
- isolation class: F
- Motor power 0.04/0.18 kW
- Marking: According to standard, CE-marked
- Standard: EN 12100, EN 13157, EN 1492-2
- Note: Always specify flange width in mm.
