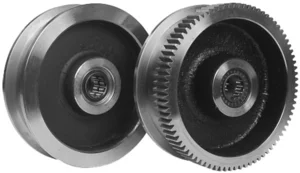

Kraanloopwielen, prijzen op aanvraag
|
Ons leveringsprogramma omvat:
Enkelflens kraanloopwielen:
|
|
| Wiel d1 h11 |
a (mm) |
b (mm) |
b12 (mm) |
b2 (mm) |
d2 (mm) |
d3 (mm) |
d4 (mm) |
d5 (mm) |
d6 (mm) |
l (mm) |
l1 (mm) |
l4 (mm) |
l5 (mm) |
t (mm) |
Aantal Lagers |
4 tandkrans | Gewicht (kg) |
Max. wiellast (daN3) |
|||
| m | z | dk | A | B | |||||||||||||||||
| 160 | 25 | 8 | 60 | 80 | 186 | 40 | 62 | 85 | 180 | 95 | 40 | 190 | 110 | 7 | 2 | 2.5 3 |
72 60 |
185 186 |
11.0 | 9.5 | 2600 |
| 200 | 25 | 8 | 60 | 80 | 232 | 40 | 62 | 117 | 225 224 |
95 | 40 | 190 | 110 | 7 | 3 | 3 4 |
75 56 |
231 232 |
18.5 | 17.0 | 4000 |
| 250 | 25 | 8 | 60 | 80 | 274 | 50 | 80 | 142 | 264 | 120 | 40 | 210 | 120 | 8 | 3 | 3 4 |
88 66 |
270 272 |
31.0 | 26.0 | 5600 |
| 300 | 25 | 8 | 65 | 90 | 336 | 50 | 80 | 152 | 330 328 |
120 | 45 | 210 | 120 | 8 | 3 | 3 4 |
110 82 |
336 336 |
44.0 | 38.0 | 6750 |
| 315 | 25 | 8 | 75 | 100 | 348 | 55 | 85 | 167 | 340 | 140 | 50 | 265 | 140 | 9 | 3 | 4 | 85 | 348 | 56.0 | 50.0 | 7100 |
| 400 | 25 | 8 | 75 | 100 | 432 | 60 | 85 | 197 | 424 | 140 | 50 | 265 | 140 | 9 | 4 | 4 | 106 | 432 | 88.0 | 73.0 | 9700 |
| 500 | 25 | 10 | 85 | 110 | 540 | 70 | 110 | 160 | 528 | 170 | 55 | 285 | 150 | 10 | 4 | 6 | 88 | 540 | 145.0 | 114.0 | 17000 |
| 630 | 25 | 10 | 95 | 120 | 680 | 80 | 120 | 180 | 664 | 200 | 60 | 335 | 160 | 10 | 4 | 8 | 83 | 680 | 240.0 | 186.0 | 21000 |
