Mechanical properties
- Anodized aluminum housing.
- Protection class IP 65.
- Overload indication at 10% inconvenience.
- Test load 2 x WLL.
- Safety factor 5 x WLL.
Electrical specifications
- Alkaline battery (9V type).
- Battery operating time about 100 hours.
Electronic specifications

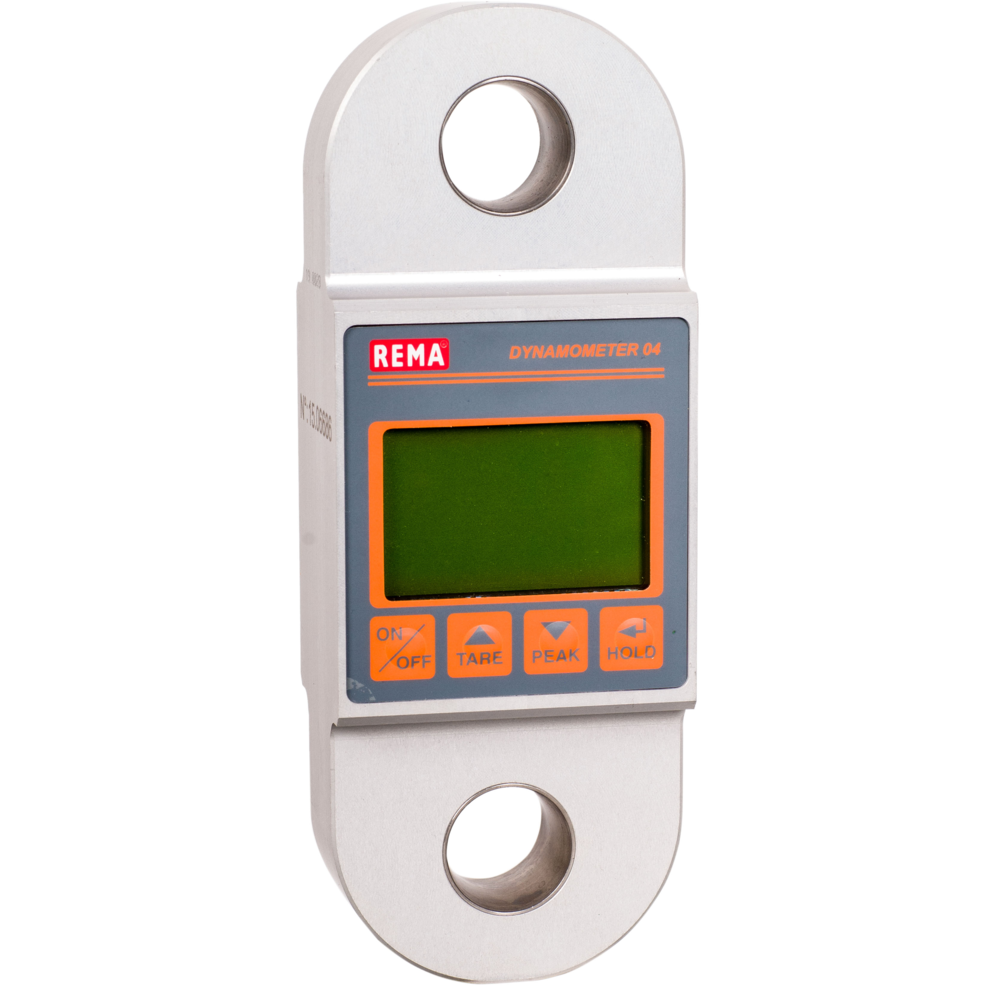

- LCD display with 5 positions, digit height 17 mm.
- Operating temperature range between -10° C to + 55° C.
- Accuracy up to approx 0.15% of the reading value.
Functions
- Automatic resetting when switched on.
- Easy-to-use menu: ON/OFF, tare, peak value and hold buttons.
- Self-calibrating at zero and weight values.
- Readout possibilities: gross, net and tare weight.
- In peak value function, maximum weight is held.
- In hold function, current weight is held.
- Measuring unit selection (kg - t - ton - lbs - daN - kN).
- Automatic power supply OFF.
Option
- Bow shackle from10T.
- Marking: According to standard, CE-marked
- Standard: EN 12100, EN 13155, EN 13889

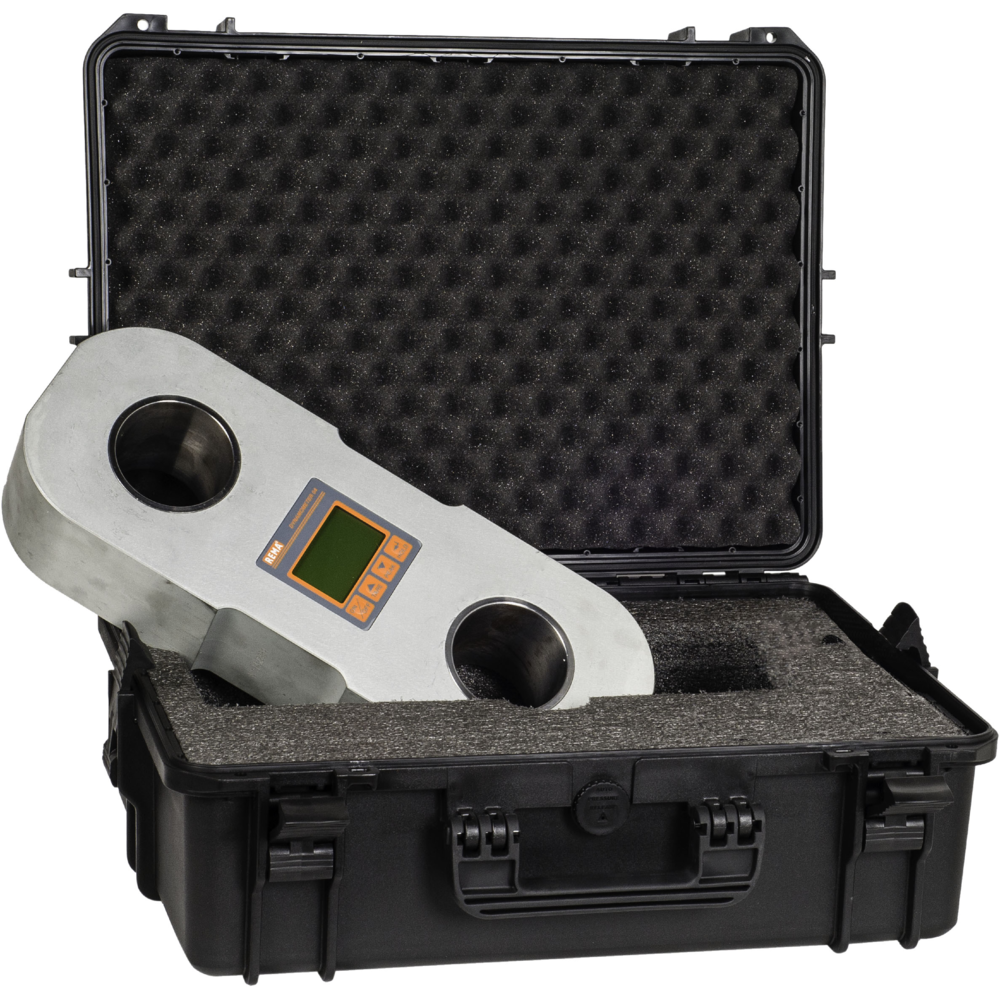

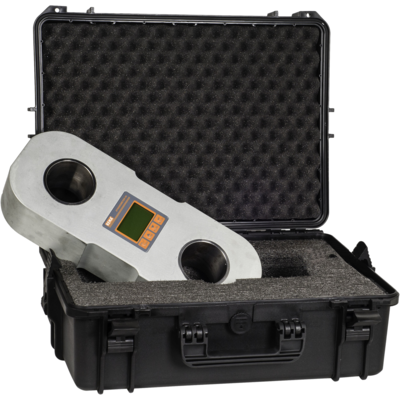

- Note: Includes plastic case, manual and calibration report.
- Safety factor: 5
